Product Overview
3224S multi-channel encoder is our newest professional HD video encoding and multiplexing device with powerful functionality. It is equipped with 4/8/12 HDMI channels input supporting MPEG-4 AVC/H.264 video encoding and MPEG1 Layer II audio encoding. It can multiplex the 4/8/12 encoded TS to generate MPTS output through DATA port. It adopts the slot structure with one device supporting maximum 3 DX224S modules. Each module can work standalone. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, terrestrial digital TV, etc.
Key Features
* 4/8/12×HDMI video inputs with MPEG-4 AVC/H.264 Video encoding
* Support MPEG1 Layer II, support audio gain adjustment
* Support IP (MPTS) output over UDP and RTP protocol
* Support Null PKT Filter
* Support Logo, Caption, QR Code insertion
* Real-time effective encoding output bit-rate monitoring
* Control via web management, and easy updates via web
* Modular design,1U chassis support up to 3 modules
* Lowest cost per channel, breakthrough price

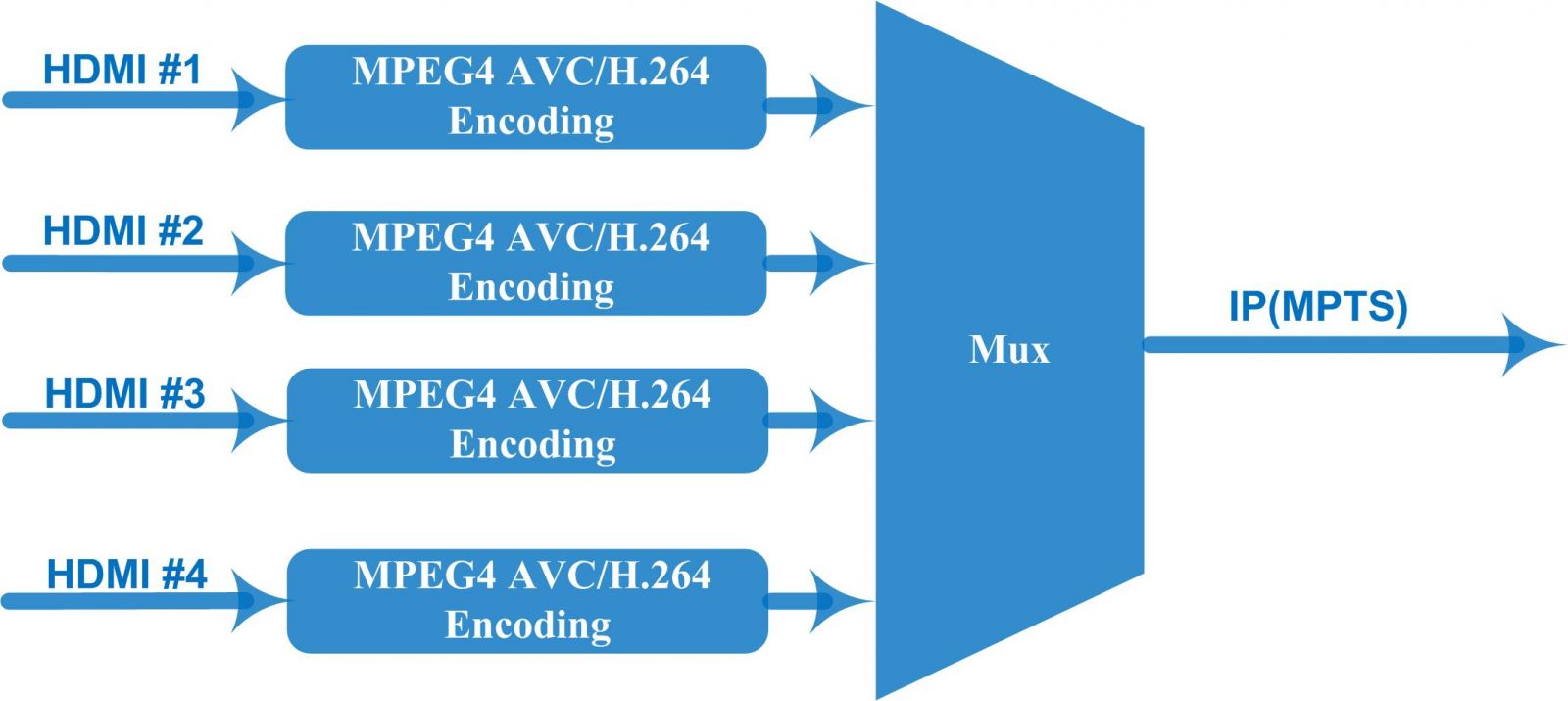

Principle Chart (per daughter module)
Technical specification
|
Input |
4/8/12 HDMI inputs |
|
Video |
Resolution |
Input |
1920×1080_60P,1920×1080_60i,1920×1080_50P, 1920×1080_50i,1280×720_60P,1280×720_50P,
720×576_50i,720×480_60i |
|
Output |
1920×1080_30P,1920×1080_25P,1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P |
|
Encoding |
MPEG-4 AVC/H.264 |
|
Bit-rate |
1~13Mbps each channel |
|
Rate Control |
CBR/VBR |
|
GOP Structure |
IP…P (P Frame adjustment, without B Frame) |
|
Audio |
Encoding |
MPEG1 Layer II |
|
Sampling rate |
48KHz |
|
Resolution |
24-bit |
|
Audio Gain |
0-255 adjustable |
|
Bit-rate |
64/128/192/224/256/320/384Kbps (each channel) |
|
Stream output |
IP (MPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (Multicast/Unicast) |
|
System function |
Network management (WEB) |
|
Chinese and English language |
|
Ethernet software upgrade |
|
Miscellaneous |
Dimension(W×L×H) |
482mm×328mm×44mm |
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
Order Information
|
|
Version I |
VersionII |
VersionIII |
|
4 HDMI Input |
○ |
|
|
|
8 HDMI Input |
|
○ |
|
|
12 HDMI Input |
|
|
○ |
|
detailed specification
